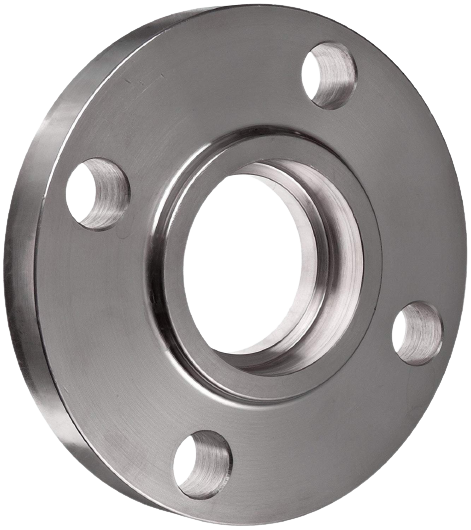

Socket weld flanges

Socket weld flanges are a relatively uncommon but incredibly efficient connection for flanges that require less total accessible space than a standard weld neck flange. They have a run-contrary in the center to make it easier to cleanly weld a tube into the socket. Connector Weld Small-size, high-pressure pipework is what flanges are designed for. Compared to double-welded Slip On flanges, they have a 50% greater fatigue resistance while maintaining the same static strength. With just one fillet weld on the flange’s exterior, the piping call is established. It is common practice to use socket welding on pipes or plumbing fittings with diameters less than DN50 to join tubes with small diameters. For both large and small-diameter pipes, butt welding is commonly used, whereas threaded welding or

The socket weld flange was initially used for stainless steel superheaters to eliminate cracking faults brought on by thermal pressures in heating operations, but after decades of development, it is now frequently used for all types of materials. Socket weld flanges can be used in place of threaded flanges to lower the risk of leaks. When using a stainless steel or carbon steel socket welded flange, there is no need to bevel the metal before welding. Welding operations outside the pipe won’t go inside the pipe hole. The best applications for these socket-welded flanges are those where interior welding is extremely difficult. Rajendra Industrial Corporation specialises in providing industrial businesses and private individuals with Stainless Steel and Carbon Steel Flanges in a variety of materials. Our headquarters are in India, and we

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Size	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production Technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF)
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Material	Inconel Socket Weld Flange, Incoloy Socket Weld Flange, Monel Socket Weld Flange, Hastelloy Socket Weld Flange, Copper Nickel Socket Weld Flange, Alloy 20 Socket Weld Flange, Nickel Alloy Socket Weld Flange, AISI 4130 Socket Weld Flange, Titanium Socket Weld Flange, Brass Socket Weld Flange, Stainless Steel Socket Weld Flange, Duplex Steel Socket Weld Flange, Super Duplex Socket Weld Flange, SMO 254 Socket Weld Flange.

Socket weld flanges

SPECIFICATION CHART OF SOCKET WELD FLANGES

A VARIETY OF SOCKET WELD FLANGES

STAINLESS STEEL SOCKET WELD FLANGES

ALLOY STEELSOCKET WELD FLANGES

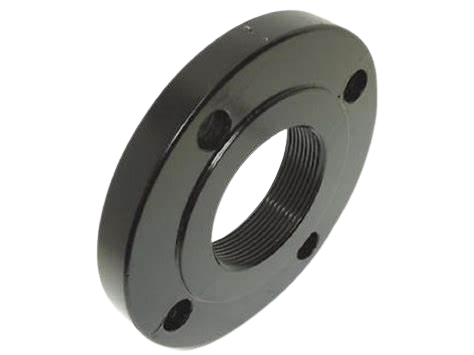

CARBON STEEL SOCKET WELD FLANGES
