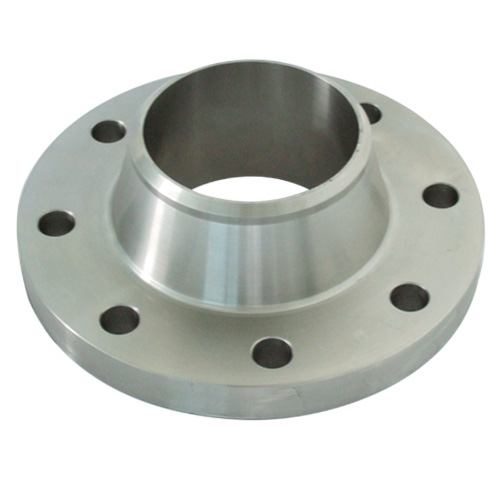

Alloy Steel Forged Flanges are manufactured, exported, and supplied by Trimac Piping Solutions. Our products are made from the highest-quality raw materials available on the market. Our items are made with cutting-edge technology and techniques. We are one of India’s leading providers of Alloy Steel Forged Flanges, and we offer them at a reasonable price. Alloy Steel Forged Flanges are a combination of elements like chromium, nickel and molybdenum along with the addition of other elements in smaller proportions. These forged flanges are a plate type device which is usually round and is attached to the end of the pipe, fitting, valve or any other object to facilitate the assembly and disassembly of a piping system. These flanges are known to have improved mechanical strength and durability. These flanges offer precise dimensions, superior finish, great resistance properties and longer service life. These flanges are well-known for their easy fabrication ability.
These Forged flanges have rugged construction, great corrosion resistance and abrasion resistance, optimum hardness and many more. We supply these flanges in numerous types, sizes, specifications, diameters, sizes, thicknesses, etc. To assure product quality, safety, and durability, all of our goods go through a series of testing. New tools and technologies are used to create our products. The forged flanges made of alloy steel have a longer service life. These flanges have amazing features and are therefore used in a number of industrial applications as well as industries. Some of the industries that use these Alloy Steel Forged Fittings are oil and refineries, chemical units, the petrochemical industry, gas processing and distribution centres and many more. These flanges are known to have amazing features, properties and characteristics due to which they are used extensively. These flanges not only offer great corrosion resistance but it is also known for their other mechanical properties.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Steel Grades | UNS Designation | Steel Names |
|---|---|---|
| ASTM A182 F1 | K12822 | C-0.5Mo |
| ASTM A182 F2 | K12122 | 0.5Cr-0.5Mo |
| ASTM A182 F5 | K41545 | 5Cr-0.5Mo |
| ASTM A182 F5a | K42544 | 5Cr-0.5Mo |
| ASTM A182 F9 | K90941 | 9Cr-1Mo |
| ASTM A182 F10 | S33100 | 20Ni-8Cr |
| ASTM A182 F91 | K90901 | 9Cr-1Mo-V |
| ASTM A182 F92 | K92460 | 9Cr-0.5Mo-1.8W-V |
| ASTM A182 F11 CL1 | K11597 | 1.25Cr–0.5Mo–Si |
| ASTM A182 F11 CL2 | K11572 | 1.25Cr–0.25Mo–Si |
| ASTM A182 F11 CL3 | K11572 | 1.25Cr–0.5Mo–Si |
| ASTM A182 F12 CL1 | K11562 | 1Cr-0.5Mo |
| ASTM A182 F12 CL2 | K11564 | 1Cr-0.5Mo |
| ASTM A182 F22 CL1 | K21590 | 2.25Cr-1Mo |
| ASTM A182 F22 CL3 | K21590 | 2.25Cr-1Mo |
| ASTM A182 F21 | K31545 | 3Cr-1Mo |
| ASTM A182 F122 | K91271 | – |
| ASTM A182 F911 | K91061 | – |
| ASTM A182 F3V | K31830 | – |
| ASTM A182 F3VCb | K31390 | – |
| ASTM A182 F22V | K31835 | 2.25Cr-1Mo-V |
| ASTM A182 F23 | K41650 | – |
| ASTM A182 F24 | K30736 | 2.25Cr-1Mo-0.25V-Ti-B |
| ASTM A182 FR | K22035 | – |
| ASTM A182 F36 | K21001 | 1.15Ni-0.65Cu-Mo-Co |
