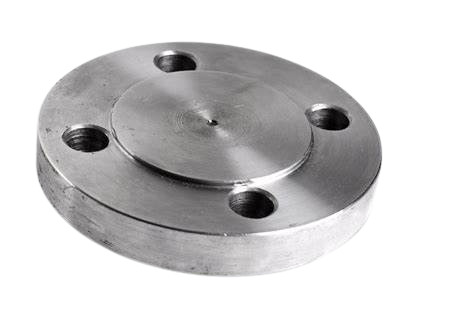

rimac Piping Solutions stands as the premier supplier, manufacturer, and dealer of carbon steel and stainless steel blind flanges in India. Our manufacturing facility in Mumbai, India, produces these blind flanges, crafted by our skilled workforce using top-quality raw materials and cutting-edge technology. The product range is designed to cater to diverse customer needs and is available in various specifications and designs.

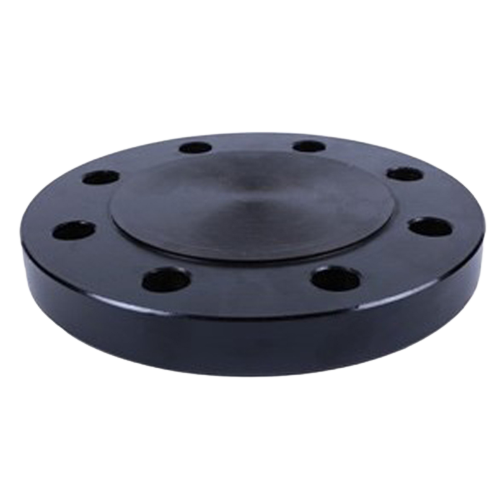

Blind flanges are manufactured from a variety of materials, and one prominent material choice is carbon steel. These flanges, produced by Trimac Piping Solutions, serve multiple purposes, including the closure or blocking off of pipelines. A carbon steel blind flange can effectively stop or seal a pipeline by being securely attached to the terminal flange. Additionally, it proves versatile in pipeline operations, enabling expansion, continuation, or repairs by simply attaching it to the terminal flange.
Our commitment at Trimac Piping Solutions is to deliver high-quality blind flanges that not only meet but exceed customer expectations. With a focus on precision, durability, and versatility, our blind flanges are the ideal solution for various applications in the industry.
These flanges are made with high-quality raw materials. The supplied Carbon Steel Blind Flanges are widely utilized in the automotive, forging, process, and machine manufacturing industries because of their rugged structure and corrosion resistance. The series is available in a variety of thicknesses to meet the needs of various clients. These Carbon Steel Blind Flanges range in carbon content from 0.25% to 0.60%. The product’s manufacturing and flexibility are both excellent because of the massive density of carbon and manganese. Rajendra Industrial Corporation manufactures and certifies flanges to meet international quality requirements. Blind Flanges are one of our most popular products. We also have Stainless Steel Blind Flanges in stock. We supply these flanges in many types of stainless steel as a leading Stainless Steel Blind Flange manufacturer. Some of the most widely utilized materials for flange operations are grades 304, 316, and duplex.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Material | Inconel Blind Flange, Incoloy Blind Flange, Monel Blind Flange, Hastelloy Blind Flange, Copper Nickel Blind Flange, Alloy 20 Blind Flange, Nickel Alloy Blind Flange, AISI 4130 Blind Flange, Titanium Blind Flange, Brass Blind Flange, Stainless Steel Blind Flange, Duplex Steel Blind Flange, Super Duplex Blind Flange, SMO 254 Blind Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
VIEW THE ASME B16.5 BLIND FLANGE PRICE LIST, ATTRACTIVE PRICE OFFER OF RAISED-FACED BLIND FLANGES PER KG, OR BUY LARGE OR SMALL QUANTITIES OF ANSI B16.5 BLIND FLANGES AT FACTORY PRICE OR FLAT-FACED BLIND FLANGES AT AFFORDABLE PRICES IN INDIA.
