The “American Society of Mechanical Engineers” is abbreviated as “ASME.” One of the oldest standards-setting organizations is the American Society of Mechanical Engineers. ASME creates specifications that are then reviewed by ANSI. They were created in the 1880s in response to a variety of mechanical demands for pressure vessel equipment. ASME includes members from diverse companies across the country, and they all have engineering experience. ASME has created hundreds of standards for mechanical devices, and given its popularity, practically all of Rajendra Industrial Corporation’s goods will most likely follow the ASME standard. The ASME Flange specifications, B16.5 and B16.47, are based on the old B16.1 specification from decades ago, which was predominantly made of cast iron. This specification was established in the 1920s by the original AESC / ASA panel B16. These current standards are the result of countless hours of engineering and design work to create a global standard.

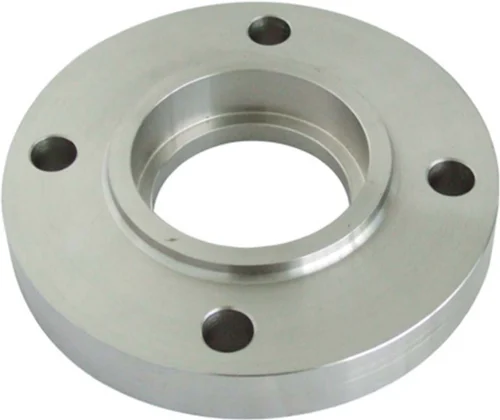

ASME Flanges, our most often requested flange specification remains the most widely utilized form of steel flange across numerous industries. These are widely used in the pressure tank and fabrication industries to hold and convey air, water, and a range of other chemicals in pressurized applications. ASME Flanges are a vital component of refineries’ infrastructure and are generally utilized to link pipes, valves, and other fittings that form the bulk of a piping assembly. The class of steel flanges is the most common for low pressure and vacuum applications since the design has proven to be useful in areas where the heat and pressure of the surroundings fluctuate on a regular basis. We, at Trimac Piping Solutions, never fail to win our clients by providing the ASME Flanges manufactured, stocked, and supplied by us.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ASME B16.5, B16.47 Series A & B |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Material | Brass ASME Flange, AISI 4130 ASME Flange, Stainless Steel ASME Flange, Alloy 20 ASME Flange, Incoloy ASME Flange, SMO 254 ASME Flange, Nickel Alloy ASME Flange, Super Duplex ASME Flange, Hastelloy ASME Flange, Duplex Steel ASME Flange, Titanium ASME Flange, Monel ASME Flange, Inconel ASME Flange, Copper Nickel ASME Flange. |
