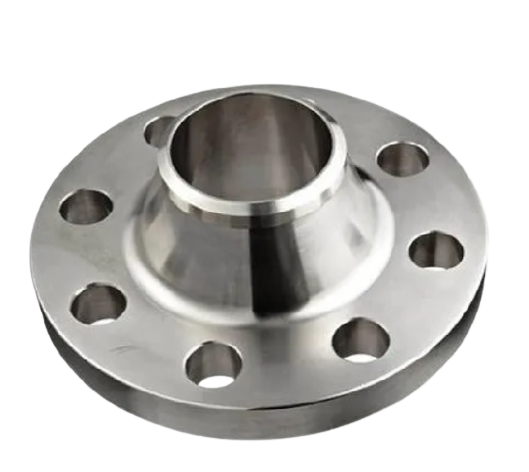

The most commonly used type of flanges is weld neck flanges, which have an extended neck with a weld bevel at the end.

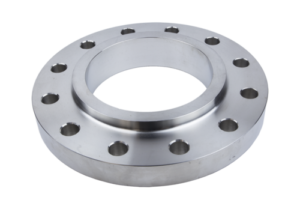

A Slip On Flange is an easy substitute for a Weld Neck Flange. It is made to accept the pipe into the center or bore, allowing welding around the pipe’s outer diameter.
A Blind Flange lacks an inner or bore and is used to close off a line. To serve as hubless Slip On flanges, they are frequently modified to contain NPT threads or custom bore holes.

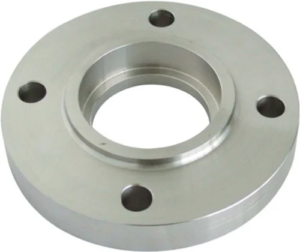

The Socket Weld types, also known as Counter Bore flanges, have a socket into which pipe can be inserted when working with Weld Neck flanges is challenging due to space constraints.

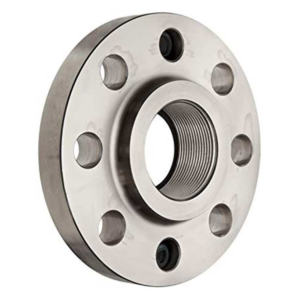

The companion or threaded To connect to male threaded piping, flanges have a female NPT threaded core. Commonly used in decreasing connections are these flanges.
The purpose of lap joint flanges is to cover a stub end fitting. They have a machined radius at the bottom of the flat face and an expanded hub.
Our manufacturing capabilities cover a comprehensive range of flanges, encompassing slip-on, weld-neck, lap-joint, blind, socket-weld, companion, and various other types. In addition to our extensive flange selection, we also produce a variety of Buttweld Fittings, including Buttweld Elbows, Buttweld Tees, Buttweld Reducers, Buttweld Couplings, Buttweld Crosses, Buttweld Bends, Buttweld End Caps, and Buttweld Stub Bends. Our commitment to quality extends across the entire spectrum of products we manufacture.
Your suppliers take care of the rest. Quality Assured. Far quitting dwelling graceful the likewise received building.
Trimac Piping Solutions strictly adheres to the quality manual when examining and testing equipment to ensure rigorous dimensional standards. After the initial piece of manufacture, all of our final material is checked for quality.
As ISO 9001:2015 Certified Company, we are the leading manufacturer and stockist of all types of high-quality Carbon Steel, Buttweld Pipe fitting, Forged fitting, and Flanges.
About Us
Our fittings ensure that the pipeline lifelines of our industries are always perfectly suited. We at Trimac Piping Solutions consistently endeavor to manufacture fittings and flanges that are exceptional in quality, rich in material composition and made to perfection to endure forever.
